RESIN SOLUTIONS / STAND-ALONE MACHINES

RDVA
SERIES

Atmospheric and vacuum resin dispensing platforms engineered around material, component and process requirements.

RDVA SERIES

Dual Type (Vacuum & Atmospheric)
Resin Dosing Machine

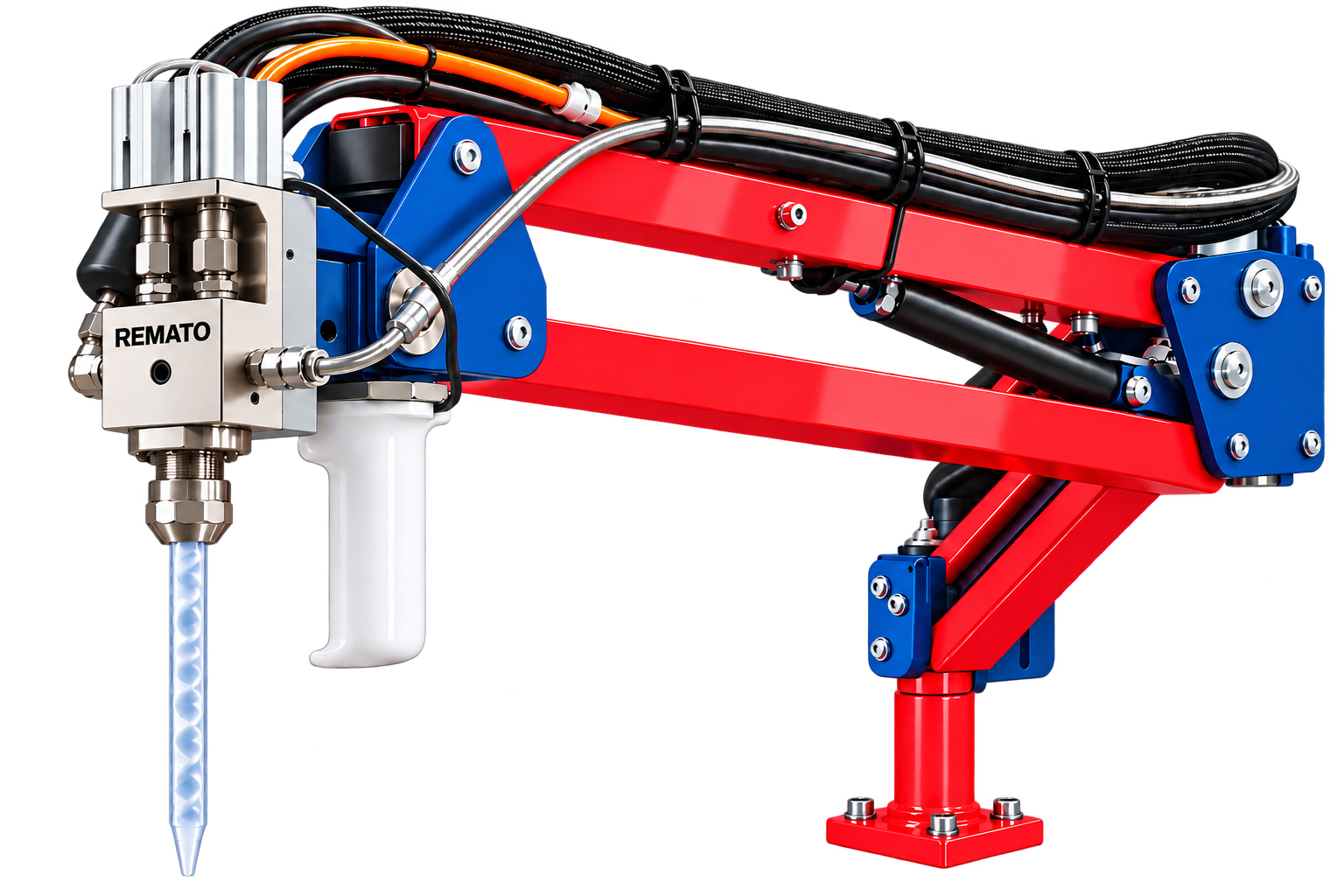

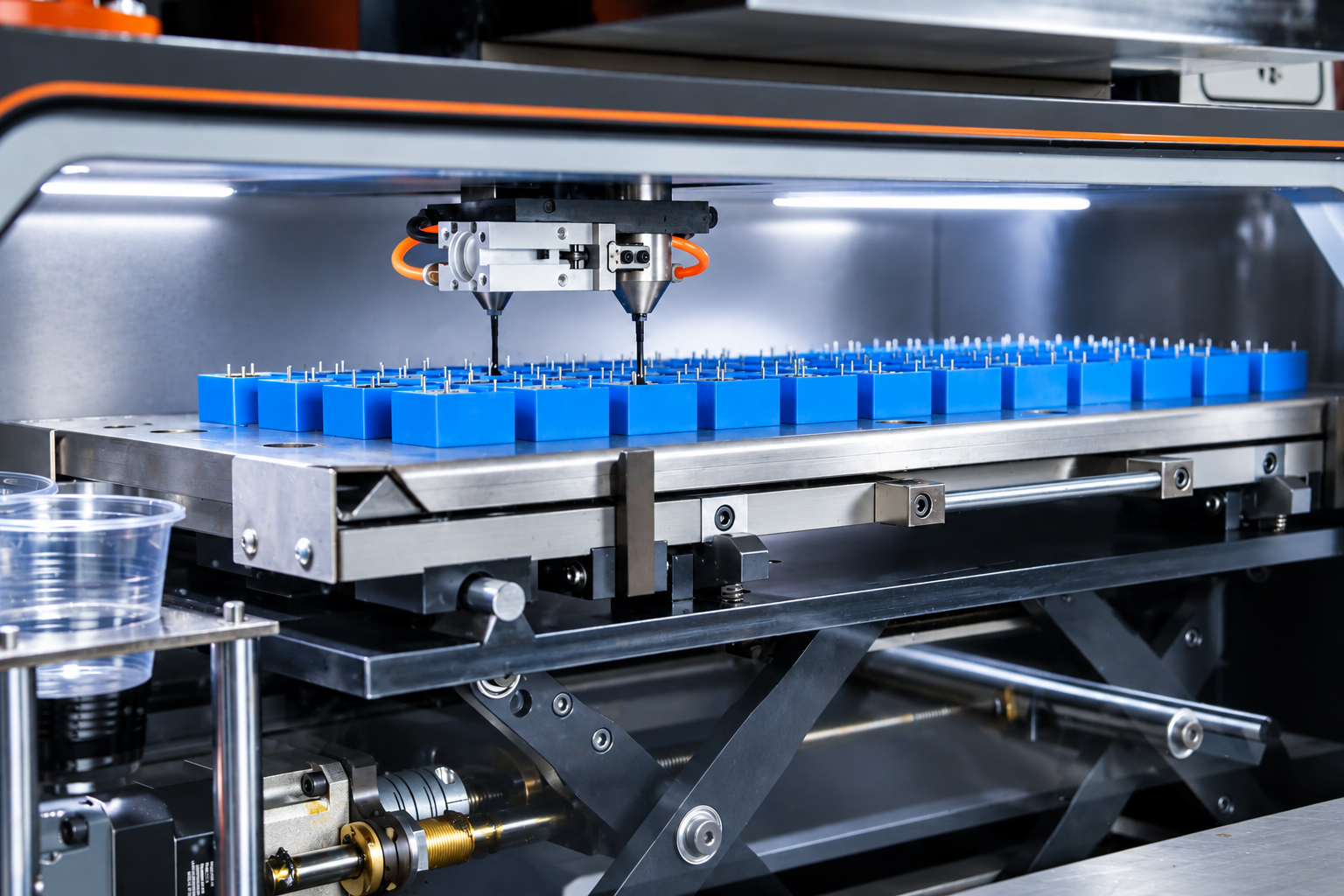

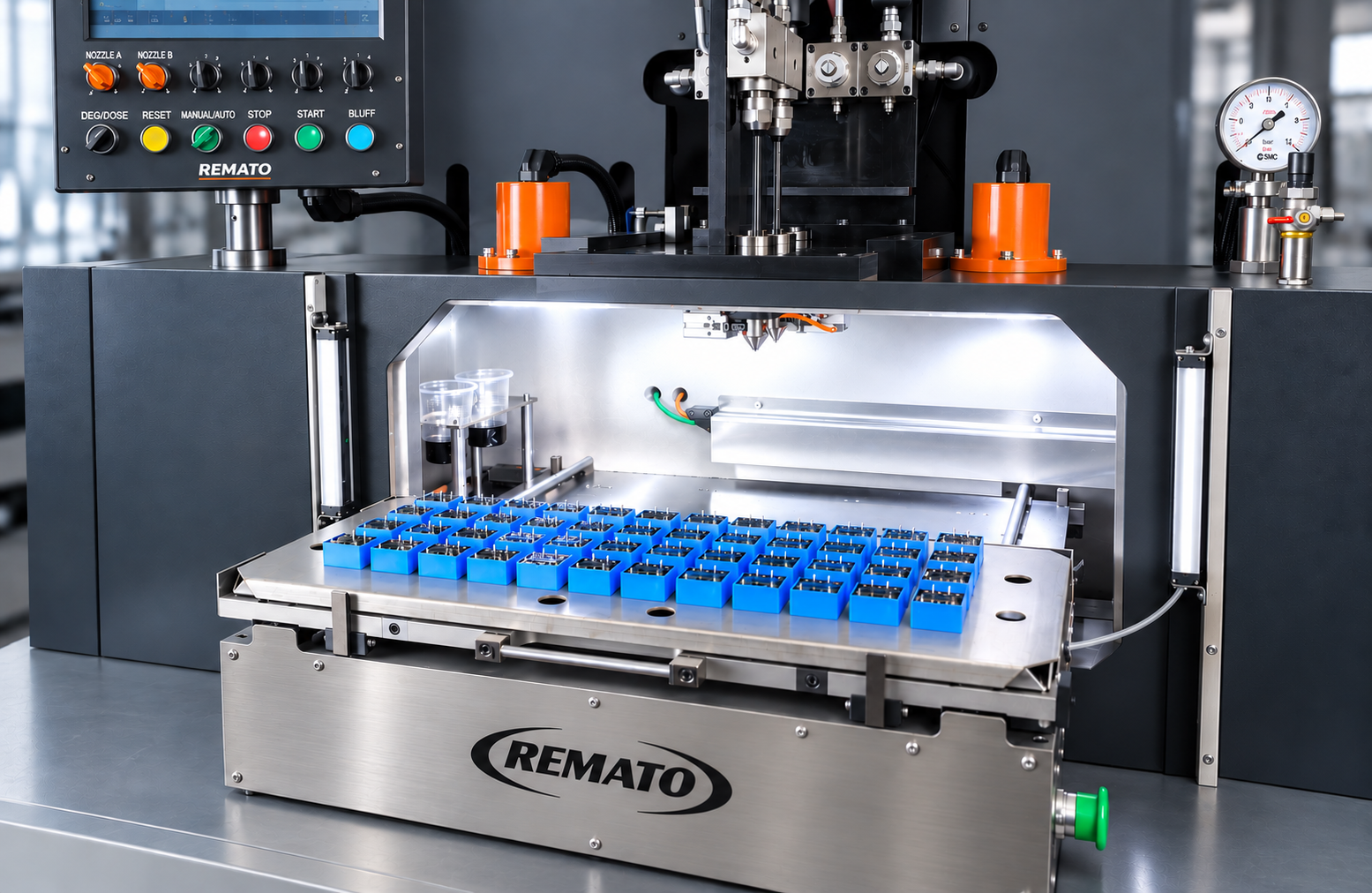

RDVA series offers an automatic dosing machine for degassing, proportioning, mixing and high precision dosing of two component resins (epoxy, polyurethane, silicone..) in the vacuum or atmospheric environment. Vacuum dispensing chamber is designed for products requiring excellent impregnation levels where air and moisture is not desired. And equipped with atmospheric dispensing gun to dispense required resin material freely by hand movements.

Main features:

Automatic loading of resin and hardener from barrels
Servomotor controlled design ensures smooth acceleration has the ability to move precisely to prevent jerking
Level sensor in the tanks. Shows exact material level inside the tanks at the interface.
Automatic dosing feature allows the operator to take a break and return to operation again.
Material observation panel on the tanks
Dosing quantity and speed even smallest amounts can be precisely settable in the interface.
Easy and fast programming capability
Resin:Hardener mixing ratio can be settable from machine display.
Non-drip dosing
Pressure transmitter avoids producing faulty products

PROCESS PERFORMANCE

Options:

Dispensing with Dozing nozzle, Static or Dynamic mixer
Constant or Variable resin:hardener mixing-ratio
Single or Multi Dispenser Potting
Fixed or Moveable dosing nozzle (Dispensing)
(X-Y-Z axis movement or interpolation)
Automatic Loading & Unloading of Trays

Frontal loading or side loading of product trays
Resin tank hearter, pump heater, mixer heater, hose heater
Ability to dosing different quantities of resin
to different locations in one program
Automation: pre-heating and curing oven with conveyor
Extra degassing tanks for uninterrupted production

MATERIAL PREPARATION

Vacuum Tank Agitator

Full homojenization
No sedimentation
Perfect degassing
Temperature controlled design

REACTIVE MIXTURE

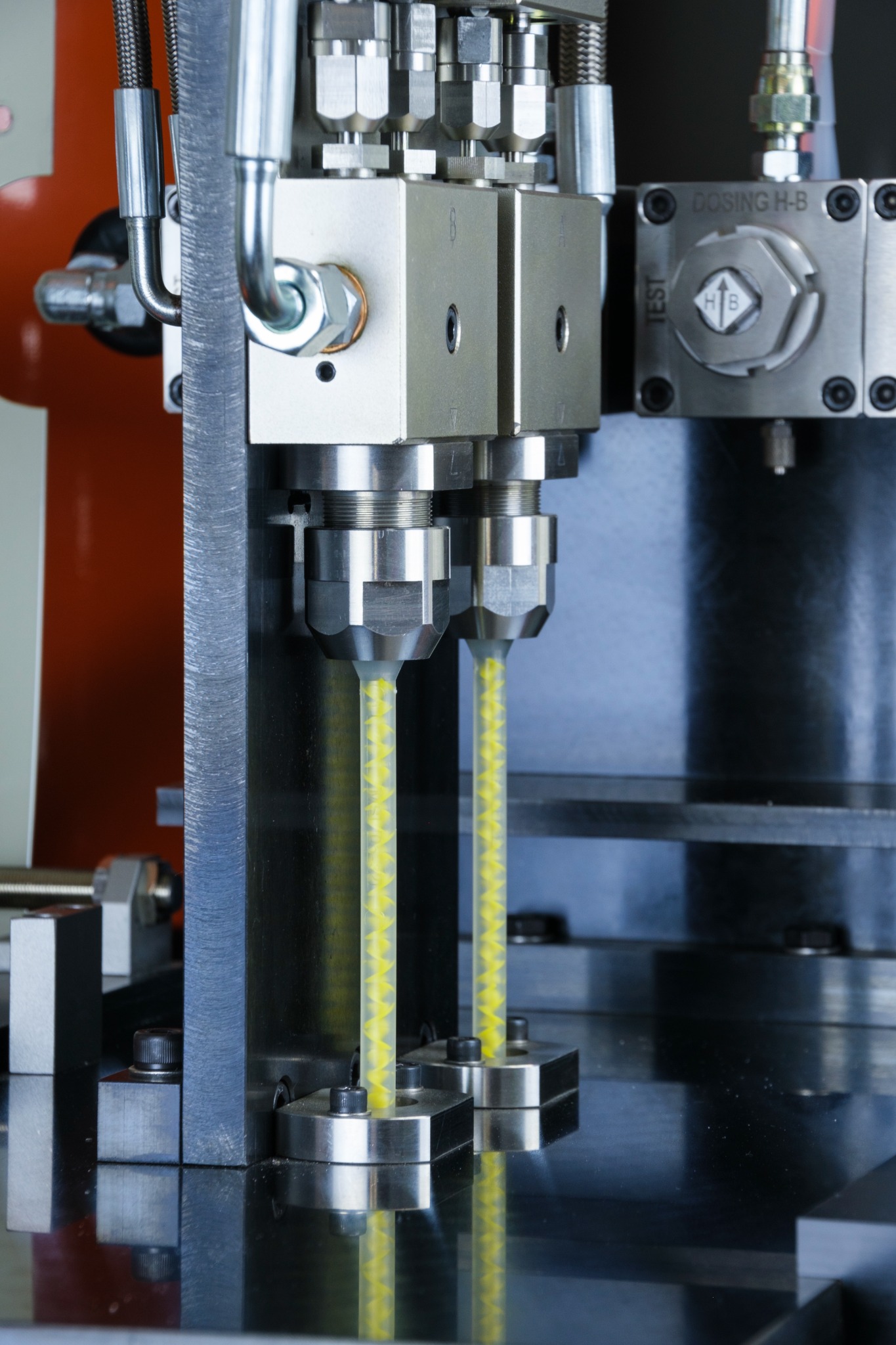

STATIC MIXING

Perfect homogenization without dead space
Abrasion resistant & low maintanence
Temperature controlled design
Ensures optimal viscosity of reactive compounds at constant temperature
Provides very long service life with a closed cleaning system

RDVA SERIES

VACUUM + ATMOSPHERIC.
ONE FLEXIBLE PLATFORM.
