RESIN SOLUTIONS / STAND-ALONE MACHINES

RDV
SERIES

Vacuum resin dispensing platform engineered for applications where air-free impregnation, stable proportioning and repeatable dosing quality are essential.

RDV SERIES

Vacuum Resin Dosing Machine

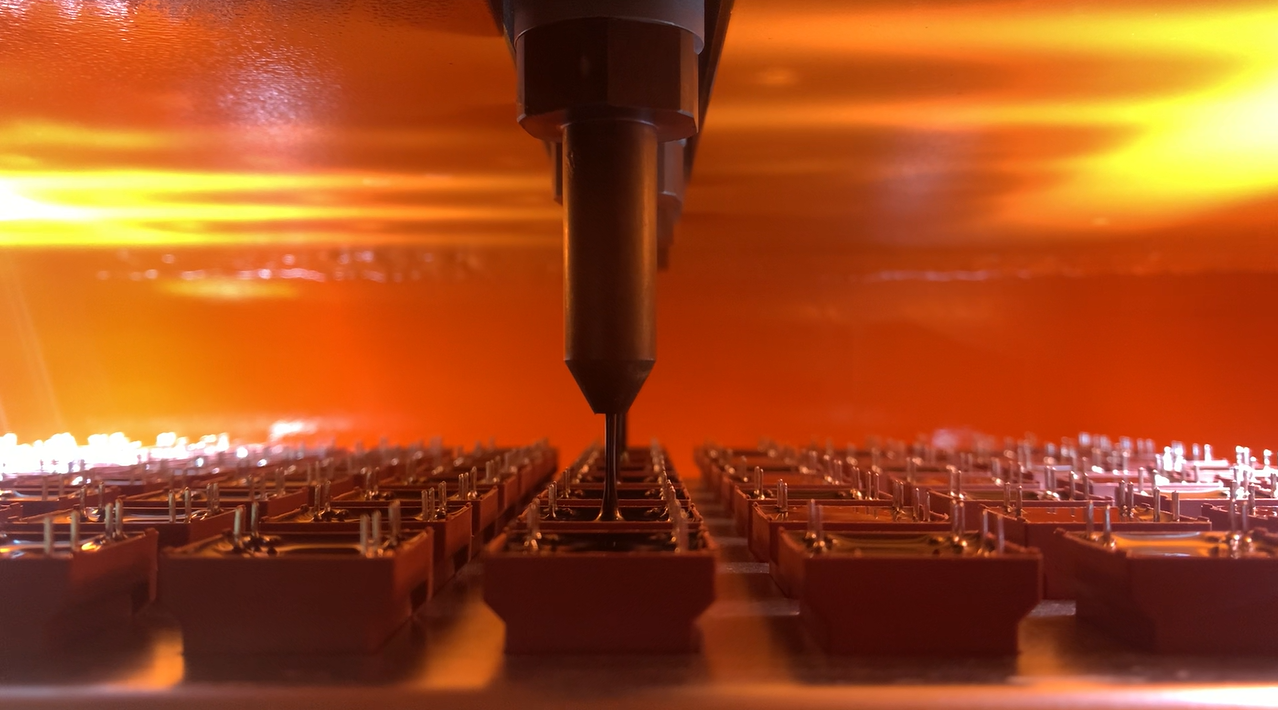

RDV series offers an automatic dosing machine for degassing, proportioning, mixing and high precision dosing of two component resins (epoxy, polyurethane, silicone..) in the vacuum environment. The vacuum dispensing chamber is designed for products requiring excellent impregnation levels where air and moisture are not desired, helping ensure highly stable process conditions and reliable end-product quality.

Main features:

Automatic loading of resin and hardener from barrels
Closed vacuum process from preparation to dispensing
Servomotor controlled dosing movement for smooth and accurate operation
Level sensor in the tanks with real-time material display on the interface
Automatic dosing feature for repeatable production cycles
Material observation panel on the tanks
Dosing quantity and speed can be precisely set from the interface
Easy and fast programming capability
Resin:Hardener mixing ratio can be set from the machine display
Pressure transmitter avoids producing faulty products

PROCESS PERFORMANCE

Options:

Dispensing with Dozing nozzle, Static or Dynamic mixer
Constant or Variable resin:hardener mixing-ratio
Single or Multi Dispenser Potting
Fixed or Moveable dosing nozzle (Dispensing)
(X-Y-Z axis movement or interpolation)
Automatic Loading & Unloading of Trays

Frontal loading or side loading of product trays
Resin tank hearter, pump heater, mixer heater, hose heater
Ability to dosing different quantities of resin
to different locations in one program
Automation: pre-heating and curing oven with conveyor
Extra degassing tanks for uninterrupted production

MATERIAL PREPARATION

Vacuum Tank Agitator

Full homojenization
No sedimentation
Perfect degassing
Temperature controlled design

REACTIVE MIXTURE

HYBRID MIXING

Perfect homogenization without dead space
Abrasion resistant & low maintanence
Temperature controlled design
Ensures optimal viscosity of reactive compounds at constant temperature
Provides very long service life with a closed cleaning system

RDV SERIES

VACUUM PROCESS CONTROL.
BUILT FOR HIGH-QUALITY IMPREGNATION.
