RESIN SOLUTIONS / STAND-ALONE MACHINES

RDA
SERIES

Atmospheric resin dispensing platform designed for accurate proportioning, mixing and dosing in a compact production-ready machine architecture.

RDA SERIES

Atmospheric Resin Dosing Machine

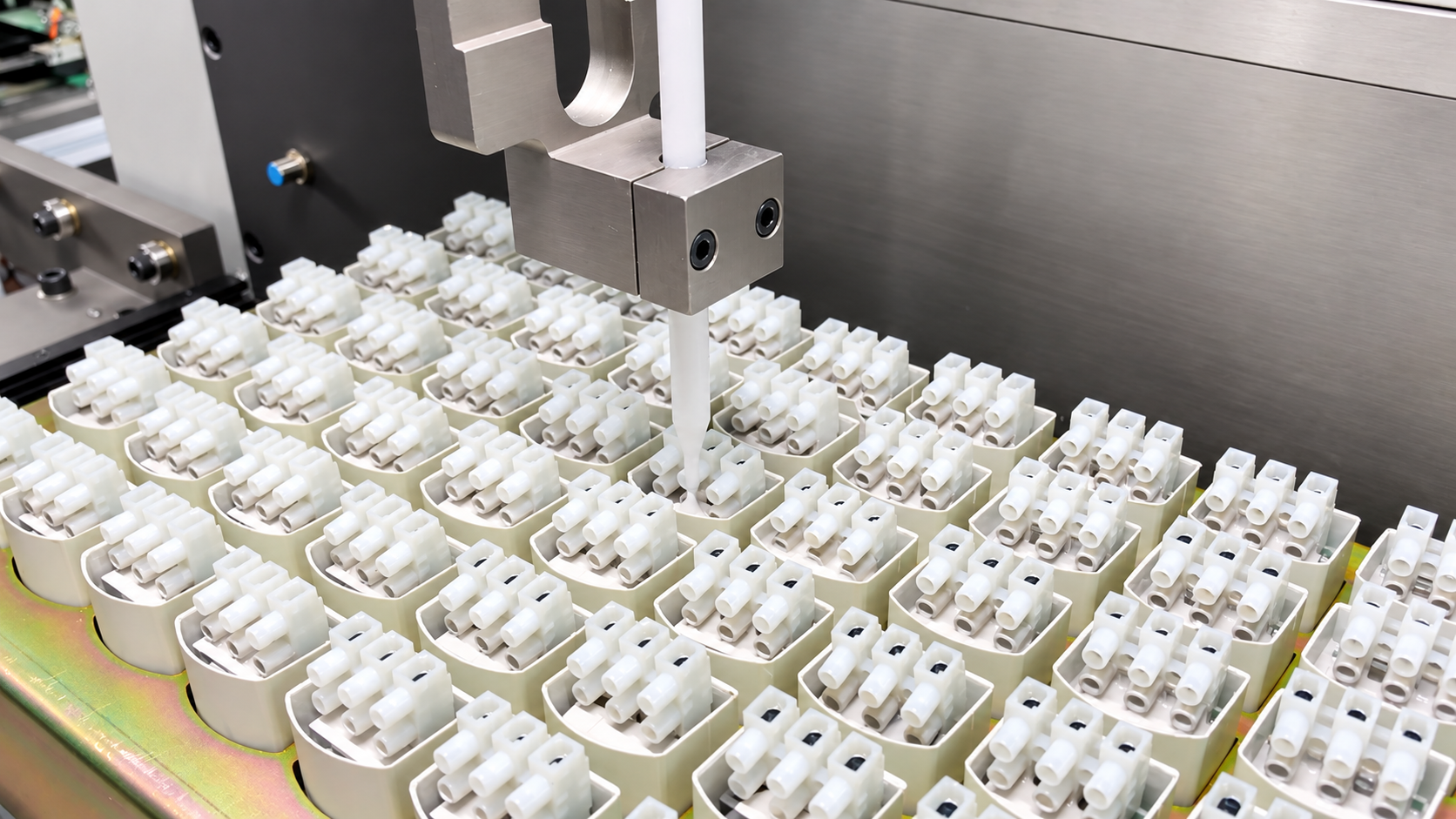

RDA series offers an automatic dosing machine for proportioning, mixing and high precision dosing of two component resins (epoxy, polyurethane, silicone..) in the atmospheric environment. It is developed for manufacturers looking for a compact, stable and easy-to-program solution for accurate dispensing without the need for a vacuum chamber.

Main features:

Automatic loading of resin and hardener from barrels
Servomotor controlled design ensures smooth acceleration and precise movement
Level sensor in the tanks. Shows exact material level inside the tanks at the interface.
Automatic dosing feature allows the operator to continue with repeatable production cycles
Material observation panel on the tanks
Dosing quantity and speed even at smallest amounts can be precisely set from the interface
Easy and fast programming capability
Resin:Hardener mixing ratio can be set from machine display
Non-drip dosing
Pressure transmitter avoids producing faulty products

PROCESS PERFORMANCE

Options:

Dispensing with Dozing nozzle, Static or Dynamic mixer
Constant or Variable resin:hardener mixing-ratio
Single or Multi Dispenser Potting
Fixed or Moveable dosing nozzle (Dispensing)
(X-Y-Z axis movement or interpolation)
Automatic Loading & Unloading of Trays

Frontal loading or side loading of product trays
Resin tank hearter, pump heater, mixer heater, hose heater
Ability to dosing different quantities of resin
to different locations in one program
Automation: pre-heating and curing oven with conveyor
Extra degassing tanks for uninterrupted production

MATERIAL PREPARATION

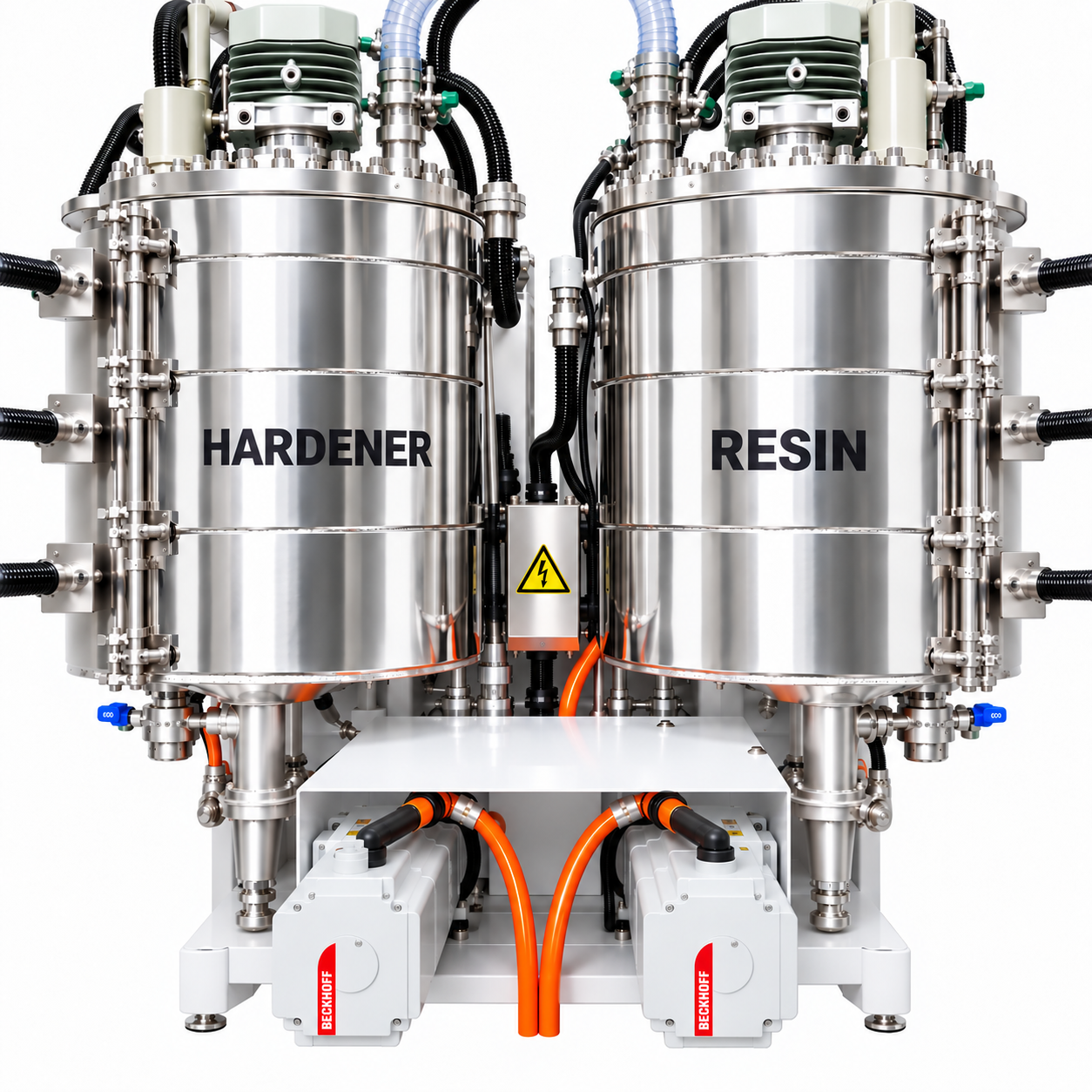

Vacuum Tank Agitator

Full homojenization
No sedimentation
Perfect degassing
Temperature controlled design

REACTIVE MIXTURE

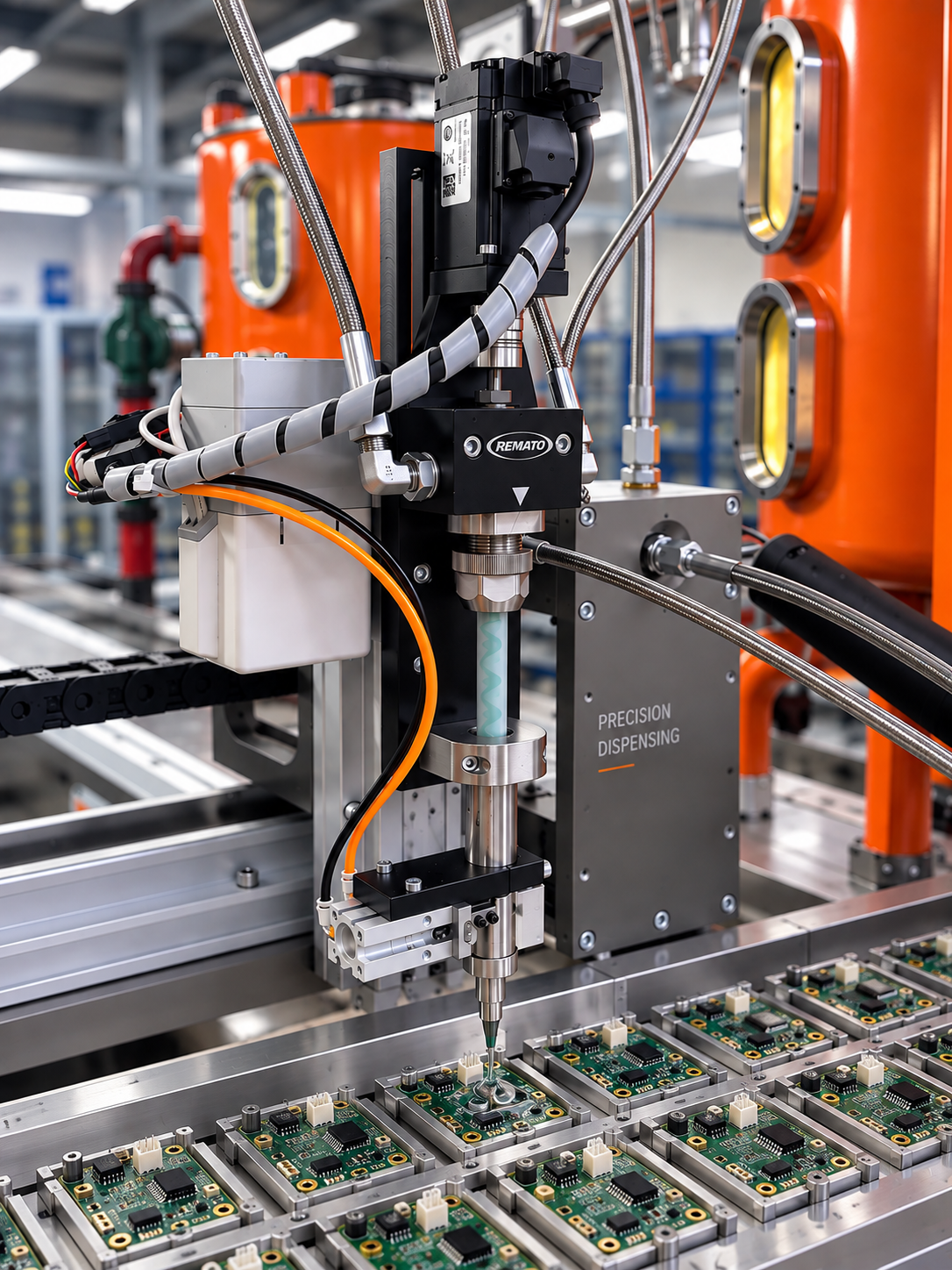

HYBRID MIXING

Perfect homogenization without dead space
Abrasion resistant & low maintanence
Temperature controlled design
Ensures optimal viscosity of reactive compounds at constant temperature
Provides very long service life with a closed cleaning system

RDA SERIES

ATMOSPHERIC PRECISION.
COMPACT, STABLE AND PRODUCTION READY.
