RESIN SOLUTIONS / RDL SERIES

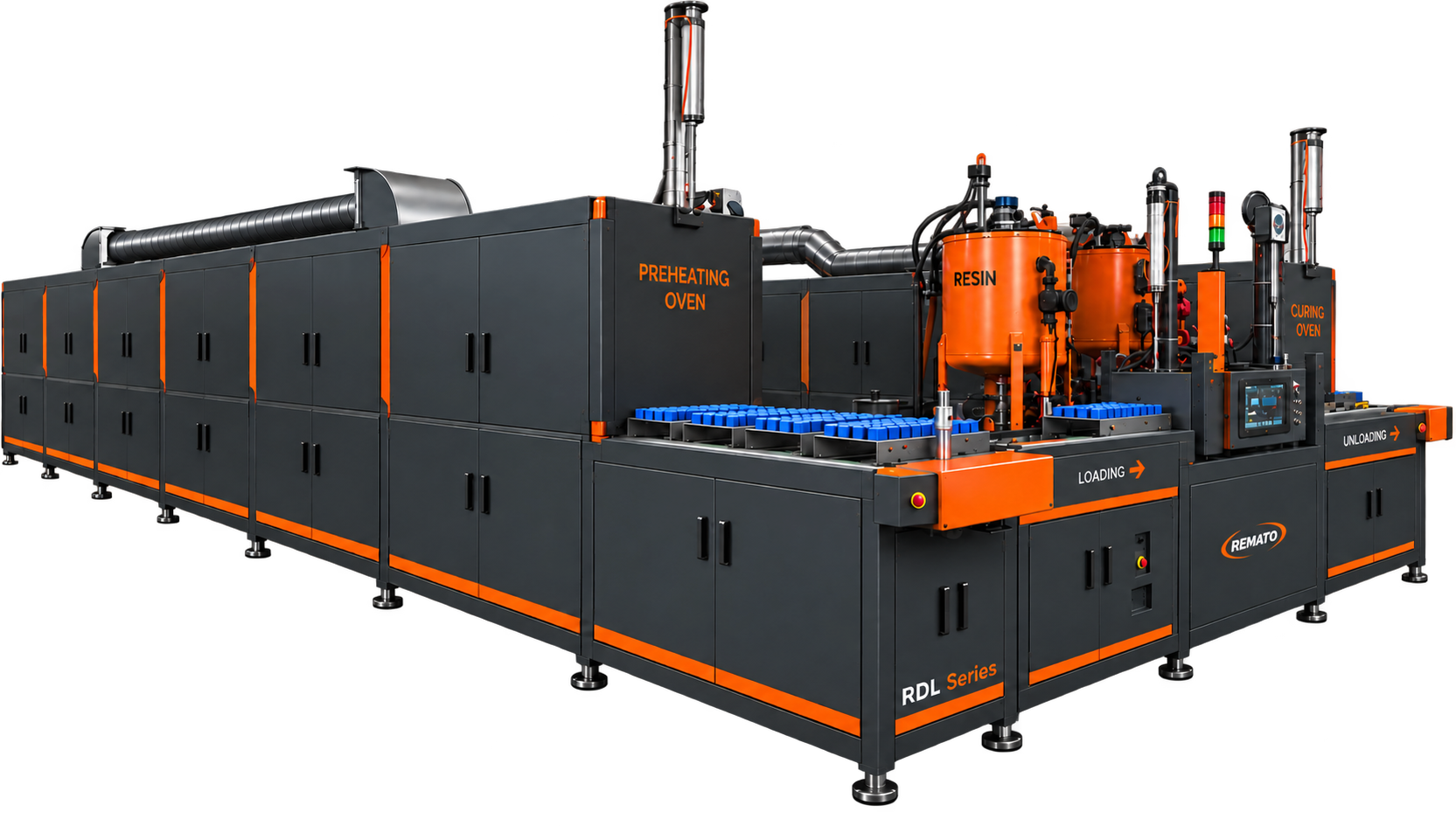

RDL Series

An integrated automation line that combines preheating, precision dispensing and curing in one continuous production flow.

PREHEATING DISPENSING CURING

SYSTEM OVERVIEW

Automatic vacuum dosing line for
high precision resin processing.

RDL offers a fully automatic vacuum dosing line for degassing, proportioning, mixing and high-precision dispensing of two-component resins (epoxy, polyurethane, silicone, etc.).

The system integrates pre-heating, vacuum dispensing and curing oven processes into a single automated production line, eliminating manual transfer operations.

Vacuum dispensing line

Integrated pre-heating + curing

Continuous automated transfer

PROCESS FLOW

Preheating

Products are thermally prepared before resin application to stabilize the process and support repeatable downstream dosing quality.

Perfect dehumidifier with controlled temperature design
Supports stable resin behavior before dosing
Seamlessly integrated into the line transfer flow

Dispensing

The central process zone combines degassing, metering, mixing and high-precision application inside one coordinated production section.

Vacuum-ready, controlled dosing environment
Precision dispensing for two-component materials
Built for continuous automated production

Curing

After resin application, parts continue automatically to the curing section so the process is completed without manual handling between stations.

Completes the full production cycle in-line
Improves process continuity after dosing
Production-ready thermal finishing stage

LINE CAPABILITIES

Main Features:

Automatic loading of resin and hardener from barrels.
Servomotor controlled design ensures smooth acceleration and precise movement to prevent jerking.
Level sensors in the tanks show the exact material level inside the tanks on the interface.
Automatic dosing feature allows the operator to take a break and return to operation again.
Material observation panel on the tanks.
Dosing quantity and speed, even for the smallest amounts, can be precisely set from the interface.

Easy and fast programming capability.
Resin:Hardener mixing ratio can be set directly from the machine display.
Non-drip dosing.
Pressure transmitter avoids producing faulty products.
Integrated Pre-Heating Oven and Curing Oven.
Automatic Transfer System.

CONFIGURATION FLEXIBILITY

Options:

Dispensing with dosing nozzle, static or dynamic mixer.
Constant or variable resin:hardener mixing ratio.
Single or multi-dispenser potting.
Fixed or moveable dosing nozzle (X-Y-Z axis movement or interpolation).
Automatic loading and unloading of trays.

Frontal loading or side loading of product trays.
Resin tank heater, pump heater, mixer heater and hose heater.
Ability to dose different quantities of resin to different locations in one program.
Automation with pre-heating and curing oven plus conveyor integration.
Extra degassing tanks for uninterrupted production.

PROCESS TECHNOLOGIES

Core modules that make the line perform.

From metering accuracy to material conditioning and mixing quality, the supporting modules behind RDL are engineered to protect dosing consistency and long-term production performance.

DOSING PUMPS

Very precise even at very low volumes.
Constant mixing ratio ensures faultless dosing.
Dosing pumps ensure minimal amounts of reactive mix.
Temperature controlled design.
Resistant to abrasion even when filled with highly abrasive casting resins and does not require maintenance.

VACUUM TANK AGITATOR

Full homogenization.
No sedimentation.
Perfect degassing.
Temperature controlled design.

HYBRID MIXER

Perfect homogenization without dead space.
Abrasion resistant and low maintenance.
Temperature controlled design.
Ensures optimal viscosity of reactive compounds at constant temperature.
Provides very long service life with a closed cleaning system.
